Paper Band Filter System
Paper Band Filter System
paper band filter system is an industrial filtration system used to remove solid particles and contaminants from a liquid, typically in manufacturing processes. This system employs a continuous loop of filter paper or a similar filtering medium to effectively separate and trap solid particles from the liquid, resulting in cleaner and reusable fluids. Paper band filter systems are commonly used in various industries, including metalworking, automotive manufacturing, and machining processes. Here's how a typical paper band filter system works:
Inlet : The contaminated liquid, often a coolant or lubricant used in metalworking or machining processes, is introduced into the paper band filter system through an inlet.
Filter Medium : Inside the system, there is a continuous loop of filter paper or fabric. This filter medium acts as the primary filtration component. It is positioned so that the liquid flows through it.
Filtration : As the liquid flows through the filter medium, the solid particles, such as metal shavings, debris, and other contaminants, are captured and trapped by the filter paper. The clean liquid passes through and is collected for reuse.
Cleaning Mechanism : Over time, as the filter paper becomes saturated with trapped particles, it needs to be cleaned or replaced to maintain efficient filtration. There are various methods to clean the filter paper, including backwashing with clean fluid, reverse rotation of the paper roll, or automatic paper advancement.
Solid Waste Disposal : The captured solid particles accumulate on the filter paper's surface. These particles are typically removed from the filter medium and collected for disposal. The disposal process depends on the type of contaminants and local regulations but often involves recycling or proper disposal methods.
Outlet : The filtered and cleaned liquid exits the system through an outlet and can be returned to the industrial process for reuse.
Advantages of a paper band filter system include:
Cost Savings : By continuously filtering and cleaning the liquid, these systems extend the lifespan of coolants and lubricants, reducing the frequency of replacement and disposal.
Improved Product Quality : Clean fluids help maintain consistent product quality in manufacturing processes, reducing defects and rework.
Environmental Benefits : By reducing waste and promoting recycling, paper band filter systems contribute to environmental sustainability.
Equipment Protection : Effective filtration helps protect machining equipment and cutting tools from damage caused by abrasive particles.
The choice of a paper band filter system depends on the specific requirements of the industrial process, including the type of contaminants, flow rates, and the level of filtration needed. These systems can range from compact units for small-scale operations to large, automated systems for heavy industrial applications. Regular maintenance and proper operation are essential to ensure the system's effectiveness and longevity.

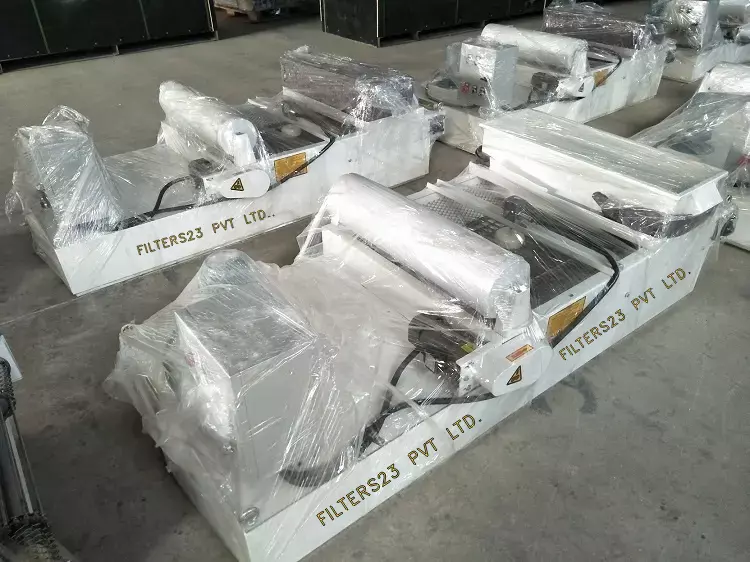

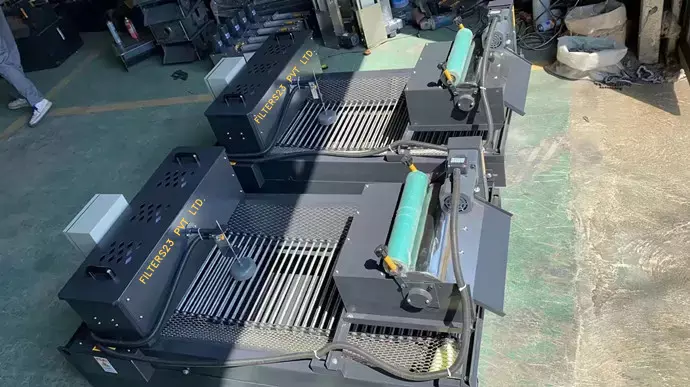

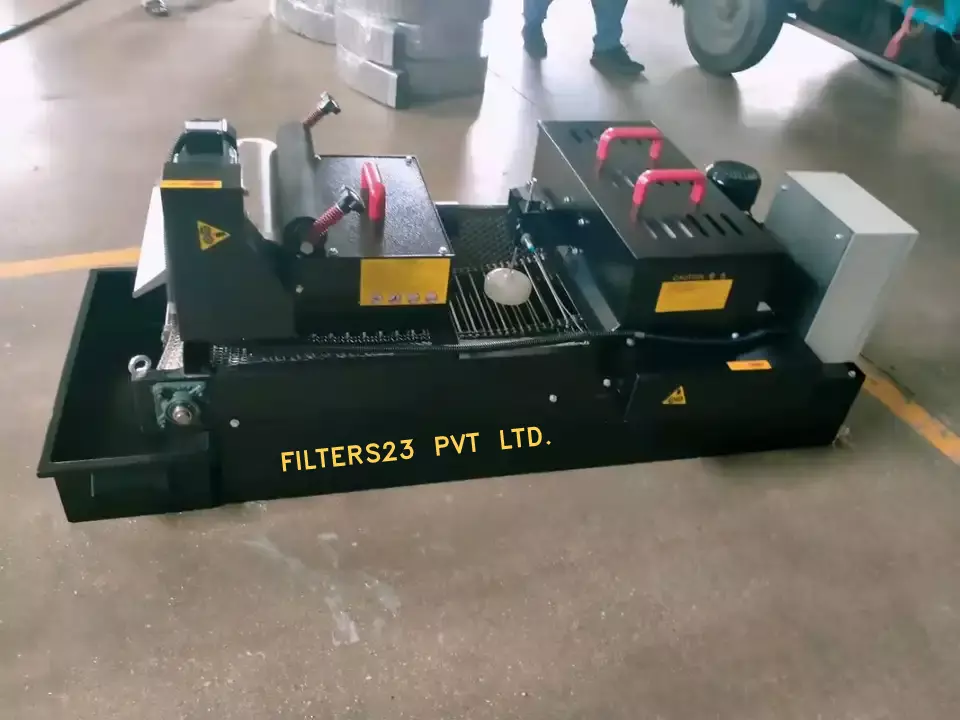

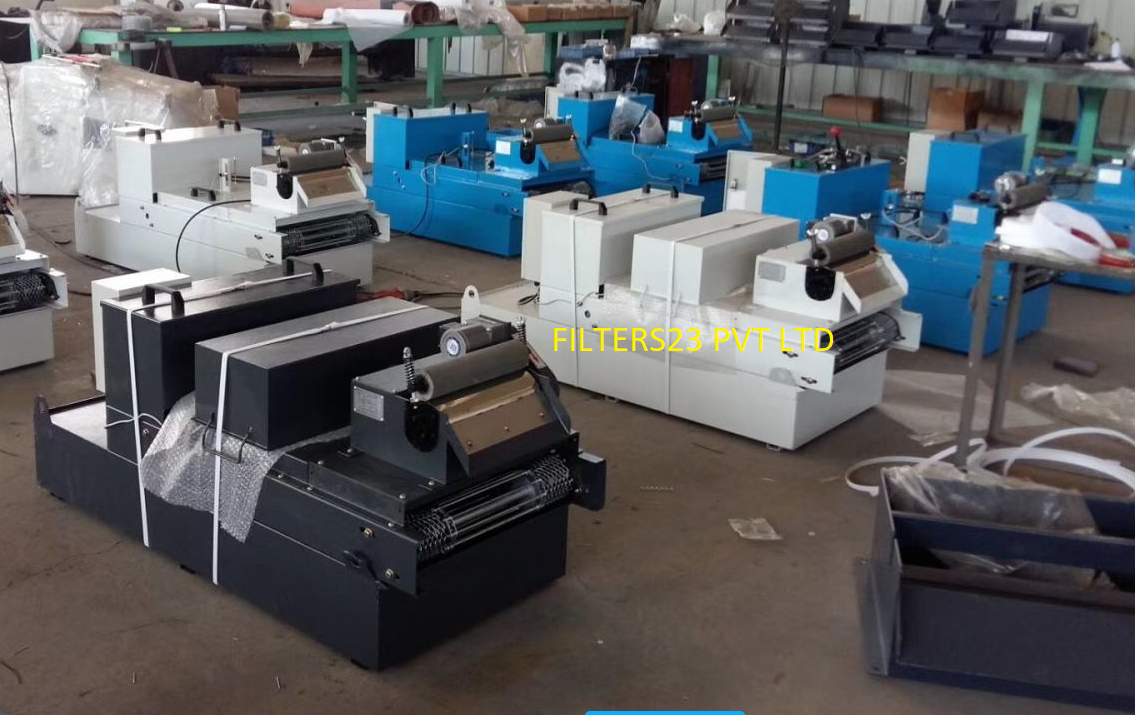

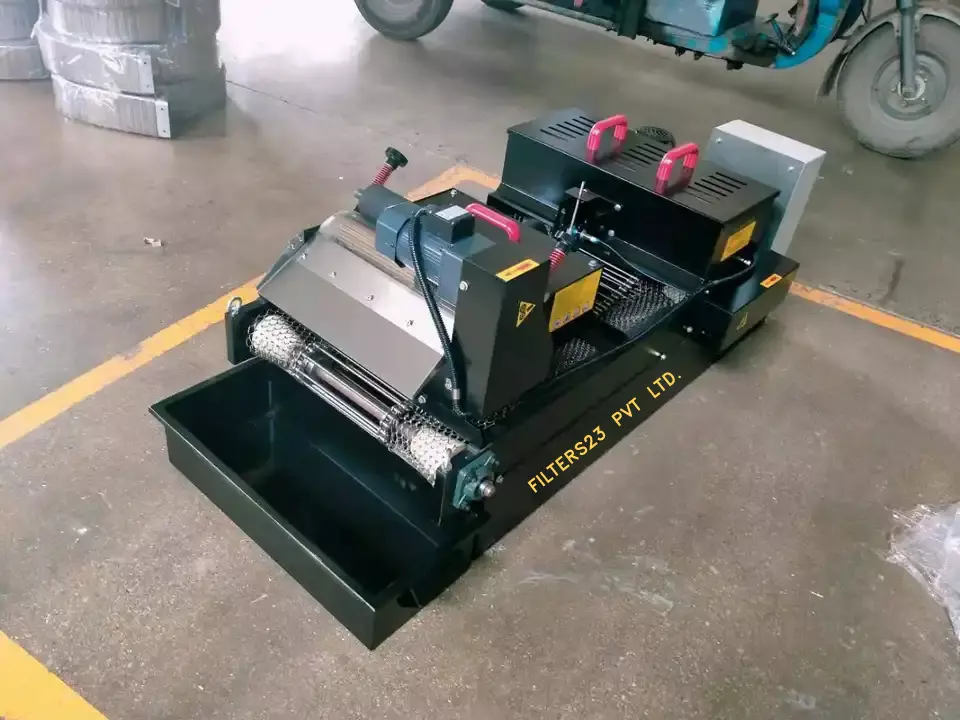

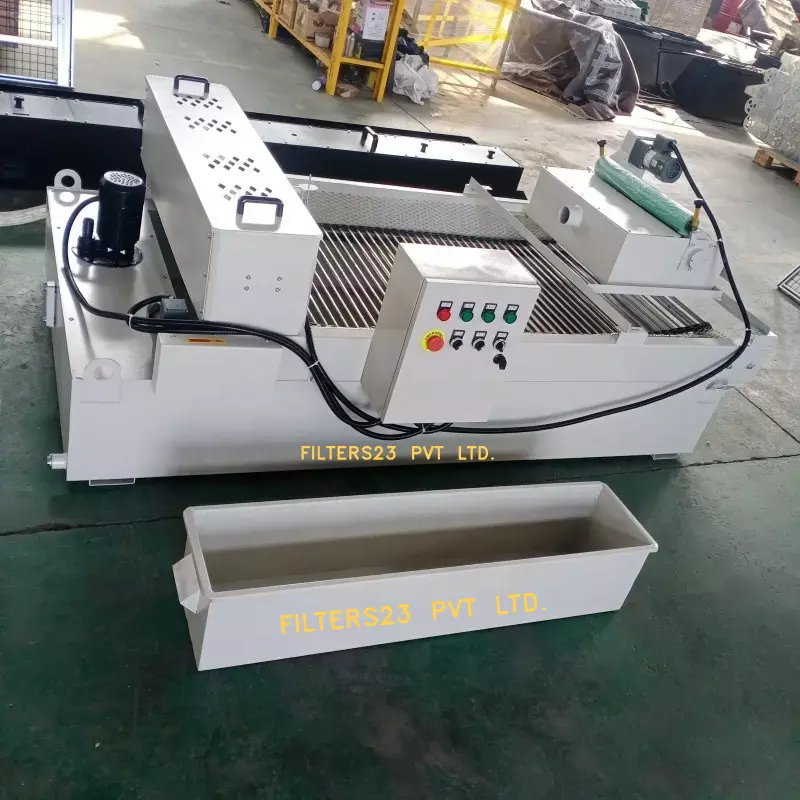

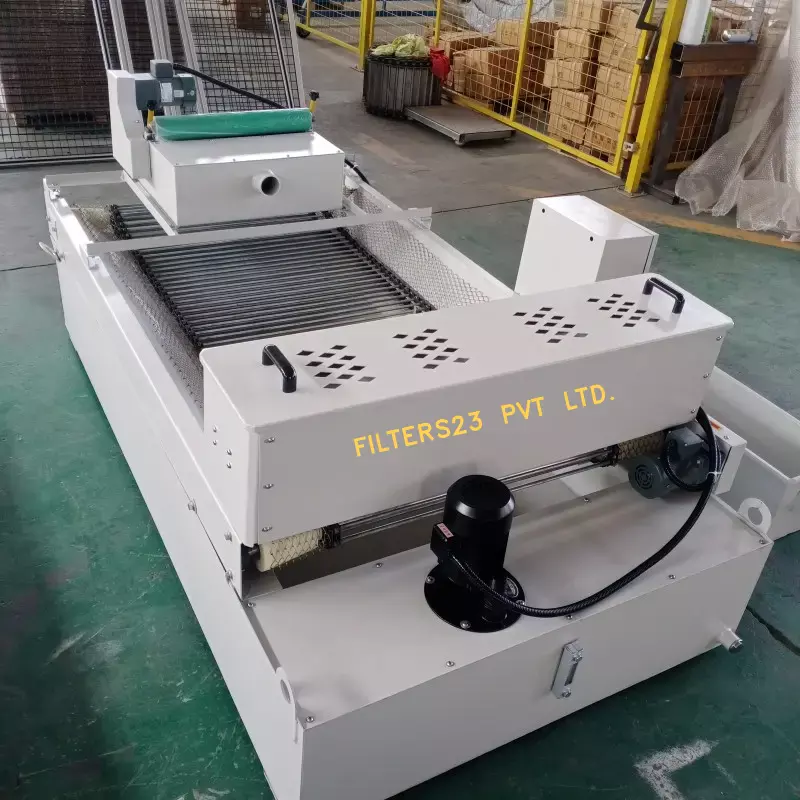

Our Gallery
